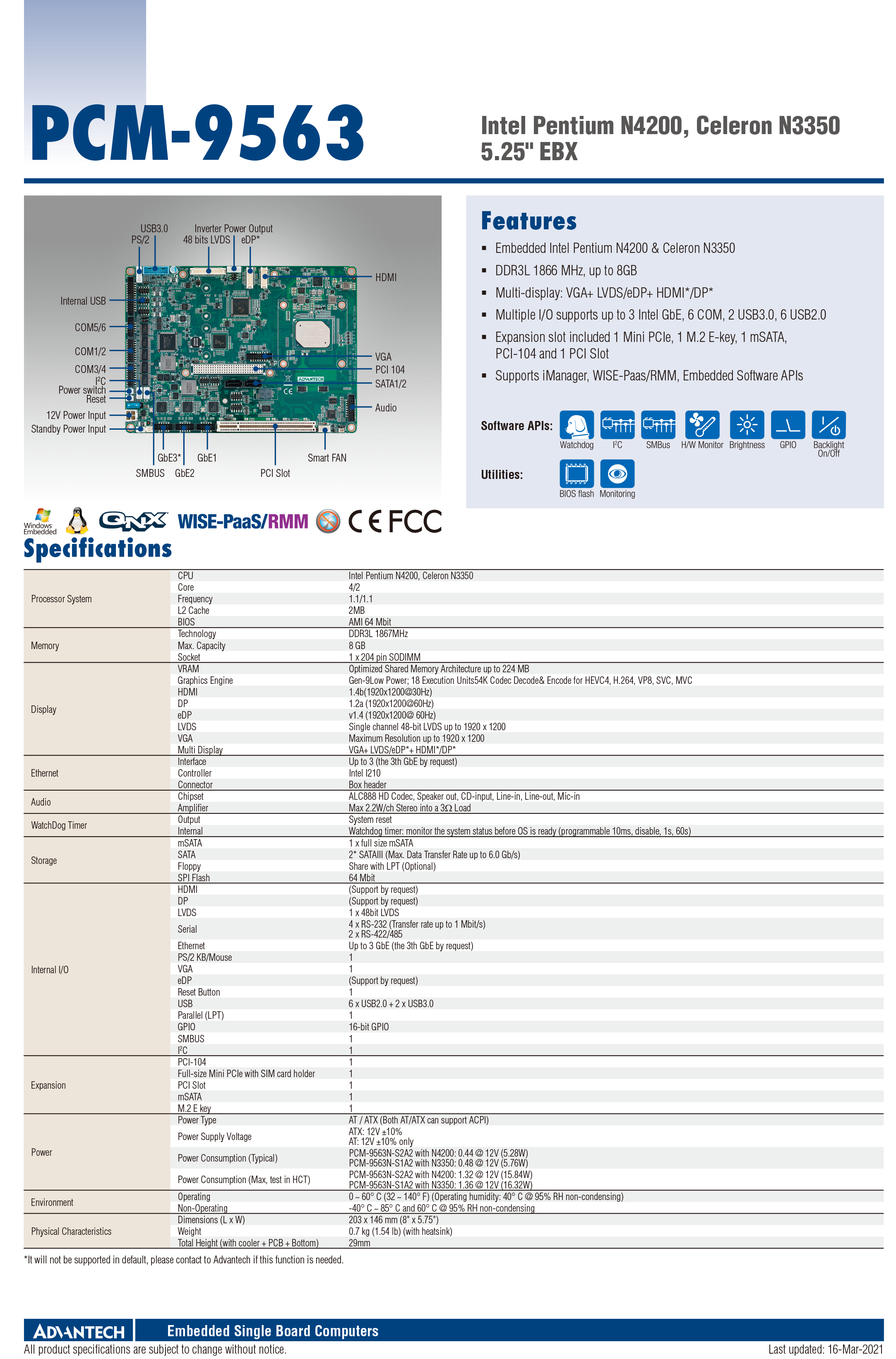

PCM-9563

类别

项目

详情

Processor System（处理器系统）

CPU

Intel Pentium N4200, Celeron N3350

Cores

4|2

Frequency

1.1/1.1

BIOS

AMI 64 Mbit

Memory（内存）

Technology

DDR3L 1667MHz

Max. Capacity

8 GB

Socket

1 x 204 pin SODIMM

VRAM

Optimized Shared Memory Architecture up to 224MB

Graphics Engine

Gen-9 low Power, 18 Execution Units@544, Decode & Encode for HEVC, H.264, VPS, SVC, MVC

Display（显示）

HDMI

1.4b (4096x2000@30Hz)

DP

1.2a (1920x1200@60Hz)

LVDS

Single channel 48 - bit LVDS up to 1200 x 1200

Multi Display

VGA + LVDS/DP + HDMI/DP

Ethernet（以太网）

Interface

Up to 1 (3rd GE by request)

Controller

Intel i210

Audio（音频）

Codec

ALC888 HD Codec; Speaker out, CD - Input, Line - In, Line - out, Mic - in

Chipset

Max 2W/2ohm Stereo into 3x4 Load

Output

System reset

WatchDog Timer（看门狗定时器）

Storage（存储）

mSATA

1 full size mSATA

SATA

2* SATAIII (Max Data Transfer Rate up to 6.0Gb/s)

Floppy

Share with FPI (Optional)

HDMI

(Support by request)

DP

(Support by request)

LVDS

(Support by request)

Serial（串口）

4 x RS - 232 (Transfer rate up to 1 Mbps)

2 x RS - 422/485

Internal I/O（内部 I/O）

PS/2 KB/Mouse

Up to 3 GE (the 3rd GE by request)

VGA

1

dP

(Support by request)

USB

6 x USB2.0 + 2 x USB3.0

Parallel (LPT)

GPIO

16 - bit GPIO

PCI

Expansion（扩展）

PCI - 104

Full - size Mini PCIe with SIM card holder

1

PCI Slot

1

mSATA

M.2 Key

M.2 E key

Power（电源）

Power Type

ATX / ATX Both (ATX can support ACPI)

ATX : 12V +/-10%

AT : 12V +/-10% only

Power Consumption (Typical)（典型功耗）

PCM - 9696 - S3A2 with N4200 @ 8.44W @ 12V (5.28W)

PCM - 9696 - S3A2 with N3350 @ 1.02W @ 12V (15.8W)

PCM - 9696 - S3A2 with N3350 @ 7.7W (Typical Operating humidity: 40°C @ 95% RH non - condensing)

Environment（环境）

Operating

Non - Operating

-40°C - 85°C and 0% - 95% RH non - condensing

Physical Characteristics（物理特性）

Dimensions (L x W)

203 x 166 mm (8" x 6.75")

Weight

0.7 kg (1.54 lb) (with heatsink)

Thickness

2mm
